DEIMOS UZA.TOTAL

H2O, CO2, NO, HCS free

Reference | DEIMOS.UZA.TOTAL.[Flow rate]/1 (with comp.)
Ultra Zero Air Total
Gas sensing, GC-FID, GC-FPD, GC-NPD

F-DGS’s DEIMOS UZA.TOTAL Ultra Zero Air generators is able to remove Total hydrocarbons to less than 0.05 ppm and others polluant like H2O, CO2, CO, NOx, SO2.

CO and THCs are removed using heated catalyst.

H2O andCO2 are removed with dual molecular sieve PSA system.

NOx is removed with Purafil and SO2 is removed with and activated charcoal filter.

The DEIMOS UZA.TOTAL is available with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation.

The generator is controlled using the latest color in touch screen technology to display the process in real time, inlet / outlet pressure, Air Flow and status of the system with remote access for diagnostic control.

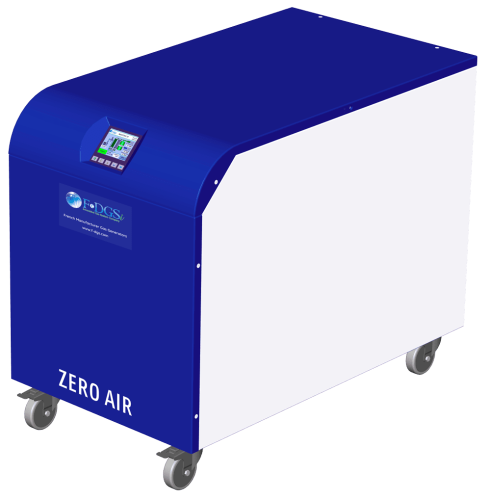

deimos-uza-total-ultra-zero-air-total-generator

Advantages product

BETTER DETECTOR PERFORMANCE

The reduction of H2O, CO2, CO, NOx, SO2 decreases the background noise level and gives the baseline much better stability, considerably increasing detector sensitivity and ensuring precise analytical results.

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

SAVE MONEY

The unit only requires connection to a suitable socket for model with integrated compressor. The investment can be paid back in less than one year.

IMPROVED SAFETY

Ultra Zero Air Total produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SECURITY OF SUPPLY

Do not requires external compressed air supply.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

 Intelligent color touch screen to provide simple and user friendly management of all functions of the unit
 With integral oil free air compressor
 Quiet thanks to the Soundproofed compressor box and anti-vibration features
 Auto start
 Audible alarm display and Visual maintenance indication with history log
 Outlet flow indicator
 Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor
 Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)
 Compact design
 Fit with wheels

Specifications

Models
DEIMOS.
UZA.TOTAL.1
DEIMOS.
UZA.TOTAL.3
DEIMOS.
UZA.TOTAL.6
DEIMOS.
UZA.TOTAL.10
DEIMOS.
UZA.TOTAL.20
DEIMOS.
UZA.TOTAL.35
DEIMOS.
UZA.TOTAL.50
GENERALS INFORMATIONS
Max TOC Air Flow rate
1 L/min
3 L/m3
6 L/min
10 L/min
20 L/min
35 L/min
50 L/min
Max TOC Air pressure
6 bar (87 psi)
Total HCs outlet
< 0.05 ppm
Total CO, NOx, SO2 outlet
< 0.05 ppm
Total CO2 outlet
< 5 ppm
H2O Dew Point
-75°C (-103°F)
-70°C (-94°F)
Particles
0.01 μ
Touch screen
Touch screen (operating parameters, system status, alarms) with LED indicators (Power on/off; ready or errors)
Max Relative Humidity
80% RH @ 25°C (77°F)
Temperature range
From 5 – 25°C (41 – 77°F))
Noise level @ 1M
< 50 dB (A)
< 52 dB (A)
Dimensions
(W x H x D)
47.5 x 66.2 x 65 cm
(18.7″ x 26″ x 25.6″)
47.5 x 66.2 x 79 cm
(18.7″ x 26″ x 31″)
Weight (kg/lbs)
58 / 128
75 / 165
121 / 267
Electrical supply
220 – 240 V ac / 1 ph / 50 – 60 Hz
110 – 120 V ac / 1 ph / 50 – 60 Hz
Power consumption
655 VA
1130 VA
1980 VA
CONNECTIONS
UZA Air outlet
G 1/4” (BSP) Female
COMMUNICATION
USB/PC Control
In series
