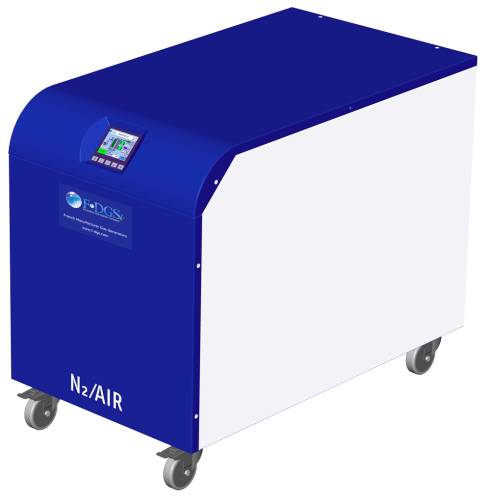

CALYPSO 2G.BR Combined Nitrogen Air Generator

For Bruker EVOQ LC-TQ - Membrane

Reference | CALYPSO.2G/1.BR (With comp.)

Nitrogen/Air

EVOQ triple quadrupole LC-MS

The CALYPSO.2G/1.BR is a dual flow generator, which has been specifically designed to meet the nitrogen and dry air needs to supply the Bruker EVOQ triple quadrupole LCMS.

The generator is built with internal air compressors as standard, and is extremely quiet in operation.

Nitrogen is produced by using membrane technology to remove oxygen, carbon dioxide and water from compresssed air. Purified air is produced using a membrane air dryer.

The generator is controlled using the latest in color touch screen technology to display the process in real time, inlet / outlet pressure, N2/Air Flow and status of the system with remote access for diagnostic control.

Advantages product

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

IMPROVED ECONOMY

Clean dry air and nitrogen gas produced as standard.

IMPROVED SAFETY

Clean dry air and nitrogen gas produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SECURITY OF SUPPLY

Integral oil free air compressor as an option guarantees continuous gas supply, independent of in house compressed air supply.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

Intelligent color touch screen to provide simple and user friendly management of all functions of the unit

Complete ‘Plug and Play’ system specifically designed for the Bruker EVOQ triple quadrupole LCMS

Nitrogen/Air pressure up to 5.5 bar (80 psi)

With integral oil free air compressor

Quiet thanks to the Soundproofed compressor box and anti-vibration features

Auto start

Audible alarm display and Visual maintenance indication with history log

Outlet flow indicator

Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor

Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)

Compact design

Fit with wheels

Specifications

Models	CALYPSO.2G/1.BR
GENERALS INFORMATIONS
Max Outlet Flow rate	32 L/min N 250 L/min Air
Max Nitrogen/Air pressure	5.5 bar (80 psi)
Purity N2/Air	Nitrogen < 1% O2; Air Dew Point -20°C (-4°F)
Particles	< 1 μ
Touch screen	Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
Max Relative Humidity	80% RH @ 25°C (77°F)
Temperature range	From 5 – 25°C (41 – 77°F))
Max Altitude	3000 Meters
Noise level @ 1M	53 dB (A)
Dimensions (W x H x D)	47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)
Weight (kg/lbs)	155 / 202
Electrical supply	220 – 240 V ac / 1 ph / 50 – 60 Hz
Electrical supply	110 – 120 V ac / 1 ph / 50 – 60 Hz
Power comsuption	2550 VA
Fuse	16A
CONNECTIONS
Nitrogen/Air outlet	1/4″ GF
COMMUNICATION
USB/PC Control	In series

Download documentation

Disposer de toute l’information nécessaire pour mener à bien votre projet est fondamental, c’est pourquoi nous vous mettons à disposition ces documents.

N’hésitez pas à nous contacter pour toutes questions.

CALYPSO 2G.BR Combined Nitrogen Air Generator - Data sheet (EN)

CALYPSO 2G.BR Combined Nitrogen Air Generator - Setup guide

CALYPSO 2G.BR Combined Nitrogen Air Generator - User manual

Made in France
