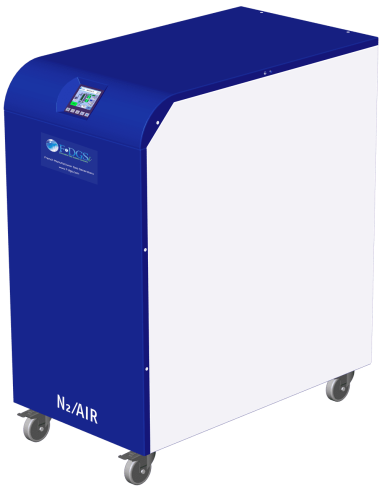

CALYPSO 3G.SC Combined Nitrogen Air Generator

For Sciex QTOF - PSA

Reference | CALYPSO.3G/1.SC (With comp.) or CALYPSO.3G/1.HF.SC (With comp.)

Nitrogen/Air

Gas solution for all Sciex LCMS excluding MD instruments

The Triple Flow generator has been specifically designed to meet the nitrogen and dry air needs to supply curtain, source and exhaust gases for Sciex LC-MS Instruments, including the X5000 series QTOF system, with the higher flow rates than the CALYPSO.3G/1.HF.SC

Nitrogen is produced by pressure swing adsorption (PSA) to remove oxygen, carbon dioxide and water from compresssed air. Purified air is produced using a membrane air dryer.

The generator is built with internal air compressors as standard, and is extremely quiet in operation.

The generator is controlled using the latest in color touch screen technology to display the process in real time, inlet / outlet pressure, N2/Air Flow and status of the system with remote access for diagnostic control.

Advantages product

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

IMPROVED ECONOMY

Pure nitrogen gas produced as standard.

IMPROVED SAFETY

Nitrogen/Air produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SECURITY OF SUPPLY

Integral oil free air compressor as an option guarantees continuous gas supply, independent of in house compressed air supply.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

Intelligent color touch screen to provide simple and user friendly management of all functions of the unit

Fully regenerative PSA technology

With integral oil free air compressor

Quiet thanks to the Soundproofed compressor box and anti-vibration features

Auto start

Audible alarm display and Visual maintenance indication with history log

Outlet flow indicator

Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor

Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)

Compact design

Fit with wheels

Specifications

Models	CALYPSO.3G/1.SC	CALYPSO.3G/1.HF.SC
GENERALS INFORMATIONS
Max N2 Flow rate	12 L/min @ 5.5 bar (80 psi)	18 L/min @ 5.5 bar (80 psi)
Dry air outlet flow for the source gas	24 L/min @ 7.6 bar (110 psi)	26 L/min @ 7.6 bar (110 psi)
Dry air outlet flow for the exhaust gas	8 L/min @ 4.1 bar (61 psi)	25 L/min @ 4.1 bar (61 psi)
Purity Air/N2	Air Dew point -55°C (-68°F), HCs < 0.1 ppm; Nitrogen > 99%
Particles	< 0.01 μ
Touch screen	Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
Max Relative Humidity	80% RH @ 25°C (77°F)
Temperature range	From 5 – 25°C (41 – 77°F))
Max Altitude	3000 Meters
Noise level @ 1M	53 dB (A)
Dimensions (W x H x D)	48.2 x 100 x 83,8 cm (19’’ x 39’’ x 33’’)
Weight (kg/lbs)	135 / 297	160 / 352
Electrical supply	220 – 240 V ac / 1 ph / 50 – 60 Hz
Electrical supply	110 – 120 V ac / 1 ph / 50 – 60 Hz
Fuse	10A
CONNECTIONS
Nitrogen outlet	G 1/4” (BSP) Female
COMMUNICATION
USB/PC Control	In series
