CALYPSO M 3G.SC

For Sciex QTOF - Membrane

Reference | CALYPSO.M.3G/1.SC (With comp.) or CALYPSO.M.3G/1.HF.SC (With comp.)
Nitrogen/Air
Gas solution for all Sciex LCMS excluding MD instruments

The Triple Flow generator has been specifically designed to meet the nitrogen and dry air needs to supply curtain, source and exhaust gases for Sciex LC-MS Instruments, including the X5000 series QTOF system, with the higher flow rates than the CALYPSO.3G/1.HF.SC

Nitrogen is produced by using membrane technology to remove oxygen, carbon dioxide and water from compresssed air. Purified air is produced using a membrane air dryer.

The generator is built with internal air compressors as standard, and is extremely quiet in operation.

The generator is controlled using the latest in color touch screen technology to display the process in real time, inlet / outlet pressure, N2/Air Flow and status of the system with remote access for diagnostic control.

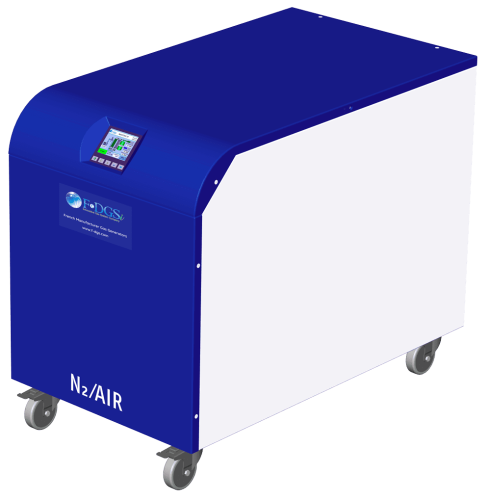

calypso-m-3g-sc-nitrogen-air-generator

Advantages product

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

IMPROVED ECONOMY

Pure nitrogen gas produced as standard.

IMPROVED SAFETY

Nitrogen/Air produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SECURITY OF SUPPLY

Integral oil free air compressor as an option guarantees continuous gas supply, independent of in house compressed air supply.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

 Intelligent color touch screen to provide simple and user friendly management of all functions of the unit
 With integral oil free air compressor
 Quiet thanks to the Soundproofed compressor box and anti-vibration features
 Auto start
 Audible alarm display and Visual maintenance indication with history log
 Outlet flow indicator
 Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor
 Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)
 Compact design
 Fit with wheels

Specifications

Models
CALYPSO.M.3G/1.SC
CALYPSO.M.3G/1.HF.SC
GENERALS INFORMATIONS
Max N2 Flow rate
12 L/min @ 5.5 bar (80 psi)
18 L/min @ 5.5 bar (80 psi)
Dry air outlet flow for the source gas
24 L/min @ 7.6 bar (110 psi)
26 L/min @ 7.6 bar (110 psi)
Dry air outlet flow for the exhaust gas
8 L/min @ 4.1 bar (61 psi)
25 L/min @ 4.1 bar (61 psi)
Purity Air/N2
Air Dew point -55°C (-68°F), HCs < 0.1 ppm; Nitrogen > 99%
Particles
< 0.01 μ
Touch screen
Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
Max Relative Humidity
80% RH @ 25°C (77°F)
Temperature range
From 5 – 25°C (41 – 77°F))
Max Altitude
3000 Meters
Noise level @ 1M
53 dB (A)
Dimensions
(W x H x D)
47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)
Weight (kg/lbs)
108 / 238
120 / 264
Electrical supply
220 – 240 V ac / 1 ph / 50 – 60 Hz
110 – 120 V ac / 1 ph / 50 – 60 Hz
Fuse
10A
CONNECTIONS
Nitrogen outlet
G 1/4” (BSP) Female
COMMUNICATION
USB/PC Control
In series

Download documentation

Disposer de toute l’information nécessaire pour mener à bien votre projet est fondamental, c’est pourquoi nous vous mettons à disposition ces documents.

N’hésitez pas à nous contacter pour toutes questions.

CALYPSO M 3G.SC - Data sheet (EN)
CALYPSO M 3G.SC - Setup guide
CALYPSO M 3G.SC - User manual
