STREAM 2G

For Shimadzu (LCMS 8045/8050/8060/9030) - Membrane Technology

Reference | STREAM.[Flow rate].2G
Nitrogen/Dry Air
Shimadzu LC-MS

The Membrane Nitrogen/Air generator has been developed to meet specific requirements in terms of flow, purity and pressure for Shimadzu LC-MS.

The generator delivers one output of laboratory-grade nitrogen and one dry air output.

F-DGS’s STREAM 2G series generator has been engineered to provide Nitrogen and air to laboratories which already have an external source of clean, dry air.

The system contains no moving parts, is effectively silent whilst in operation and requires minimal maintenance.

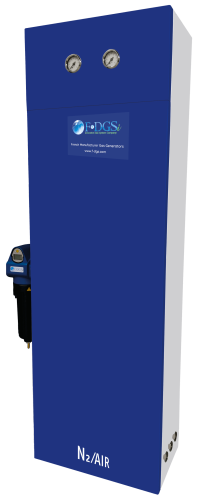

stream-2g-nitrogen-air-generator

Advantages product

IMPROVE LABORATORY EFFICIENCY

The relatively high gas volumes required by LCMS instruments make cylinder supply inappropriate for such applications. A constant, uninterrupted gas supply eliminates interruptions of analyses to change cylinders.

IMPROVE ANALYTICAL INSTRUMENTS PERFORMANCE

Production of a constant flow of gas improves the consistency of the analysis results and hence reproducibility.

IMPROVE ECONOMY

- Quick return on investment < 1 year
- No gas cylinder rental bottles, no price inflation

IMPROVE SAFETY

Nitrogen and dry air produced at low pressure and ambient temperature removes the hazards associated with high pressure cylinders and liquid Dewar’s.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere. No power supply is require.

Characteristics

 24h/7 operation at optimum performance if required
 Gas is supplied on demand
 Completely silent in operation
 Wall mounted installation: Save space in the lab
 No noise: No mechanical parts moving
 No need of electricity supply
 Low maintenance: only to replace the filters once per year

Specifications

Models
STREAM.27.2G
GENERALS INFORMATIONS
Max N2 Flow rate
27 L/min @ 99% @ 6.9 bar (100 psi)
Dry air outlet flow
29 L/min @ 6.9 bar (100 psi)
Air inlet pressure Min./Max.
8 – 10 bar (116 – 145 psi)
Pressure loss
< 0.8 bar (12 psi)
N2 dewpoint at operating pressure
-55°C (-67°F)
Particles
< 0.1 ppm
Air flow rate required @ 8 bar (116 psi)
120 L/min
Suspended liquids
None
Temperature range
5 – 30°C (50 – 95°F)
Dimensions
(W x H x D)
38 x 120 x 22.5 cm (15″ x 47″ x 9″)
Weight (kg/lbs)
24 / 53
CONNECTIONS
Inlet/outlet
1/4 G

Download documentation

Disposer de toute l’information nécessaire pour mener à bien votre projet est fondamental, c’est pourquoi nous vous mettons à disposition ces documents.

N’hésitez pas à nous contacter pour toutes questions.

STREAM 2G - Data sheet (EN)
STREAM 2G - Setup guide
STREAM 2G - User manual
