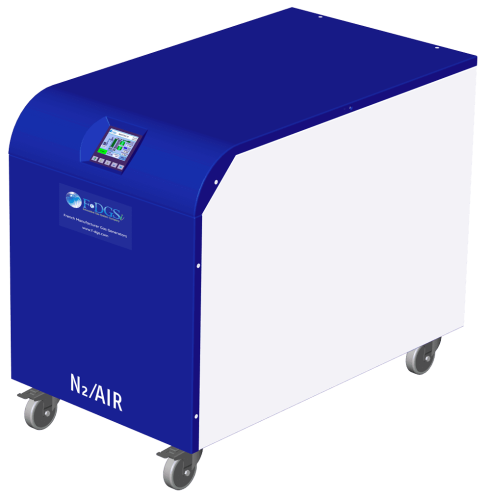

THEMISTO MP Combined Nitrogen Air Generator

PSA Technology

Reference | THEMISTO.MP

Nitrogen/Air

MP-AES

The THEMISTO MP dual flow generator has been specifically designed to meet the Nitrogen for plasma support gas monochromator purge and air supply for POP gas or monochromator air purge for MP-AES instrument.

The THEMISTO MP has two operation modes :
Either 25 L/min N2 at 99.5% for organic analysis or 10 L/min N2 at 99.95% for Sulfur analysis with a supporting air supply of up to 36.5 L/min.

The THEMISTO MP is available with integrated oil free air compressor using the Energy Saving Technology mode (EST). Fitted with an oxygen sensor, THEMISTO MP will alert you when N2 purity has been reched.

The Generator is controlled using the latest color touch screen technology to display the process in real time, inlet/ outlet pressures and status of the system with remote access for diagnostic control.

Advantages product

IMPROVE ANALYTICAL INSTRUMENTS PERFORMANCE

The production of a constant flow of gas improves the consistency of the analysis results and hence reproducibility.

IMPROVE LABORATORY EFFICIENCY

The relatively high gas volumes required by MP-AES instruments make cylinder supply inappropriate for such applications. A constant, uninterrupted gas supply eliminates interruptions of analyses to change cylinders.

IMPROVE ECONOMY

- Quick return on investment < 1 years
- No gas cylinder rental bottles, no price inflation

IMPROVE SAFETY

Nitrogen and Air produced at low pressure and ambient temperature removes the hazards associated with high pressure cylinders and liquid Dewar’s.

Characteristics

Intelligent color touch screen to provide simple and user friendly management of all functions of the unit

Fully regenerative PSA technology

Complete ‘Plug and Play’ system specifically designed for the Agilent MP-AES

Two operation modes for Organic or Sulfur analysis

With integral oil free air compressor

Quiet thanks to the Soundproofed compressor box and anti-vibration features

Auto start

Fast start-up purity < 30 min

Audible alarm display and Visual maintenance indication with history log

Outlet flow indicator, with oxygen sensor fitted

Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor

Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)

Compact design

Fit with wheels

Specifications

Models	THEMISTO.MP
GENERALS INFORMATIONS
Gas	Nitrogen		Air
Max Flow rate	25 L/min	10 L/min	36.5 L/min
Max pressure	6 bar (87 psi)		6 bar (87 psi)
Nitrogen purity	> 99.5%	99.95%	–
Dew Point	–		-20°C (-4°F)
Particles	0.01 μ
Touch screen	Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
Built with O2 sensor	Yes (to control N2 purity)
Max Relative Humidity	80% RH @ 30°C
Temperature range	From 5 – 25°C (41 – 77°F))
Max Altitude	4000 Meters
Noise level @ 1M	60 dB (A)
Dimensions (W x H x D)	47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)
Weight (kg/lbs)	155 / 202
Power comsuption	2200 VA
Electrical supply	220 – 240 V ac / 1 ph / 50 – 60 Hz
Electrical supply	110 – 120 V ac / 1 ph / 50 – 60 Hz
Fuse	10A
CONNECTIONS
Nitrogen/Air outlet	2x 1/4″ GF
COMMUNICATION
USB/PC Control	In series

Download documentation

Disposer de toute l’information nécessaire pour mener à bien votre projet est fondamental, c’est pourquoi nous vous mettons à disposition ces documents.

N’hésitez pas à nous contacter pour toutes questions.

THEMISTO MP Combined Nitrogen Air Generator - Data sheet (EN)

THEMISTO MP Combined Nitrogen Air Generator - Setup guide

THEMISTO MP Combined Nitrogen Air Generator - User manual

Made in France
