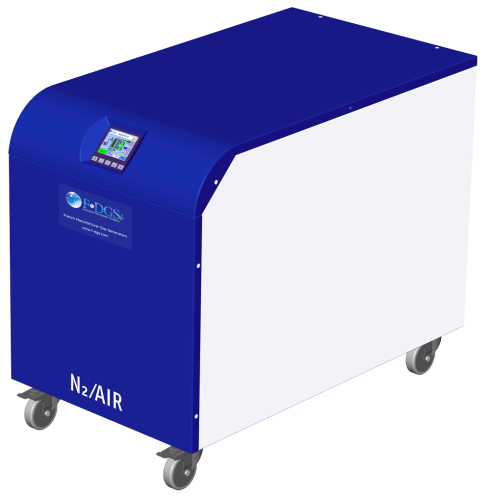

THEMISTO PEGA Combined Nitrogen Air Generator

For LECO PEGASUS - PSA Technology

Reference | THEMISTO.PEGA

Nitrogen/Air

LECO PEGASUS 4D GC x GC-TOFMS

The THEMISTO PEGA dual flow generator has been specifically designed to meet the Nitrogen and Pure Air needs to supply a LECO PEGASUS 4D GC x GC-TOFMS.

The THEMISTO PEGA is available with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation.

The Generator is controlled using the latest color touch screen technology to display the process in real time, inlet/ outlet pressures and status of the system with remote access for diagnostic control.

Nitrogen is produced by pressure swing absorption (PSA) to remove oxygen, carbon dioxide and water from compressed air and purified air is produced by using a cyclonic water separator filter and submicronic coalescing filter.

Advantages product

IMPROVE ANALYTICAL INSTRUMENTS PERFORMANCE

The production of a constant flow of gas improves the consistency of the analysis results and hence reproducibility.

IMPROVE LABORATORY EFFICIENCY

Gas on demand, no need to worry about running out of gas.

IMPROVE ECONOMY

- Quick return on investment < 1 years
- No gas cylinder rental bottles, no price inflation

IMPROVE SAFETY

Nitrogen and Air produced at low pressure and ambient temperature removes the hazards associated with high pressure cylinders and liquid Dewar’s.

Characteristics

Intelligent color touch screen to provide simple and user friendly management of all functions of the unit

Fully regenerative PSA technology

Complete ‘Plug and Play’ system specifically designed for the LECO PEGASUS 4D GC x GC-TOFMS

With integral oil free air compressor

Quiet thanks to the Soundproofed compressor box and anti-vibration features

Auto start

Fast start-up purity < 30 min

Audible alarm display and Visual maintenance indication with history log

Outlet flow indicator

Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor

Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)

3 ways valve with timer (adjustable) for N2 gas line outlet to have the night quality N2 after a switch off.

Compact design

Fit with wheels

Specifications

Models	THEMISTO PEGA
GENERALS INFORMATIONS
Cooling Gas	N2 gas : 20 L/min, N2 Dew Point < -60°C (-76°F)
Heating Gas	Pure Air gas : 12 – 40 L/min
Max pressure outletNitrogen/Air	6 bar (87 psi)
Particles	0.01 μ
Touch screen	Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
Max Relative Humidity	80% Non – Condensing
Temperature range	From 5 – 25°C (41 – 77°F))
Max Altitude	4000 Meters
Noise level @ 1M	60 dB (A)
Dimensions (W x H x D)	47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)
Weight (kg/lbs)	155 / 202
Power comsuption	2200 VA
Electrical supply	220 – 240 V ac / 1 ph / 50 – 60 Hz
Electrical supply	110 – 120 V ac / 1 ph / 50 – 60 Hz
Fuse	10A
CONNECTIONS
Nitrogen/Air outlet	2x 1/4″ GF
COMMUNICATION
USB/RS232/PC Control	In series

Download documentation

Disposer de toute l’information nécessaire pour mener à bien votre projet est fondamental, c’est pourquoi nous vous mettons à disposition ces documents.

N’hésitez pas à nous contacter pour toutes questions.

THEMISTO PEGA Combined Nitrogen Air Generator - Data sheet (EN)

THEMISTO PEGA Combined Nitrogen Air Generator - Setup guide

THEMISTO PEGA Combined Nitrogen Air Generator - User manual

Made in France
