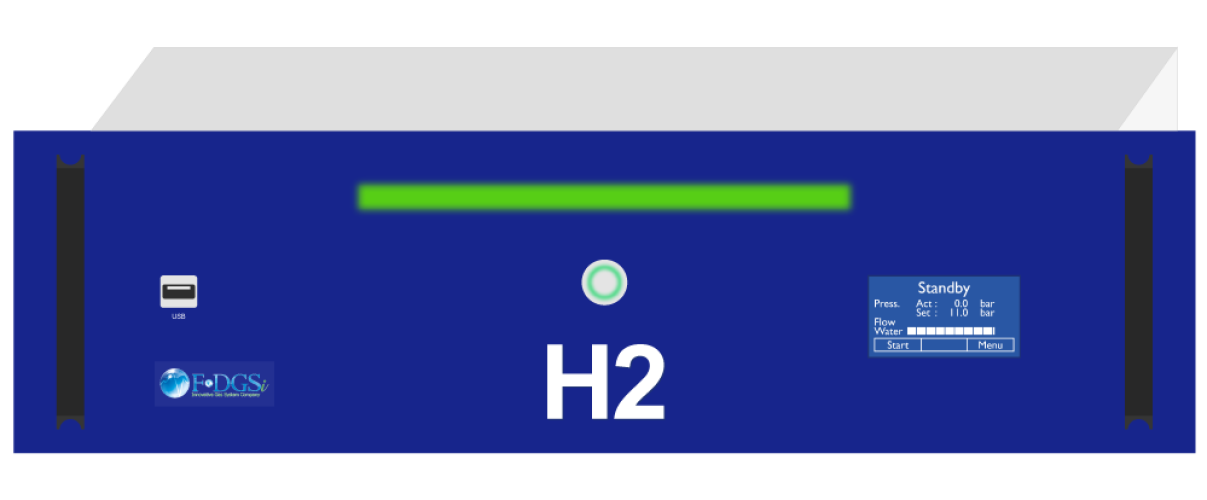

COSMOS RACK MB.H2

Rack Standard Purity - Static membrane dryer

Reference | COSMOS.RACK.MB.H2.[Flow rate]
Hydrogen
Fuel cell, GC-Carrier gas, GC-FID, GC-FPD, GC-NPD, GC-TCD, Hydrogenation, ICP-MS, Synthetic Diamond (CVD), THA

The COSMOS RACK MB.H2 hydrogen generators use the exclusive electrolyte membrane technology (PEM cell) 100% full titanium to produce high grade purity H2 gas.

The exclusive cold dual dynamic regeneration dryer on RACK.MF series is completely maintenance free and allows continuous operation 24 hours a day. The automatic checking for internal leaks whenever starting the unit and constant control of operating parameters guarantee maximum safety.

COSMOS RACK MB.H2 Series use a Drying system: static, maintenances-free

cosmos-rack-mb-h2-hydrogen-generator

Advantages product

IMPROVED CHROMATOGRAPH RESULT

The use of hydrogen as a carrier gas allows lower temperature elution, thus extending the life of the chromatograph column. Hydrogen as a carrier gas is faster and more sensitive than the more-expensive helium. Run time savings of 25% to 35% without a decline in resolution.

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

IMPROVED SAFETY

The very limited internal volume (less than 50 ml) allows safe use of the gas generators where the use of cylinders is risky or prohibited.

The application of tested safety technologies stops the unit in the event of leaks or malfunctions

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

 RACK.MB.H2: use a Drying system: static, maintenances-free
 Flow rate: 100 to 600 cc/min
 Pressure up to 11 bar (160 psi)
 LCD touch screen: with indication in real time: H2 outlet pressure, H2 flow rate, water quality, water level, system status with auto-diagnostics of breakdown with alarms
 LED indicators status (Ready, Stand-by, Alarm, Off)
 Remote PC monitoring via USB to interface the unit with customer’s PC software (allow the end user to be connected with the manufacturer for remote diagnostics)
 Up to 32 units can be controlled in cascading mode

Specifications

Models
RACK.MB.H2.100
RACK.MB.H2.160
RACK.MB.H2.250
RACK.MB.H2.300
RACK.MB.H2.500
RACK.MB.H2.600
GENERALS INFORMATIONS
H2 flow rate – cc/min
110
160
250
300
500
600
Electrolytic cell
Long life Multilayer PEM technology
H2 purity
> 99.9996% (O2 < 0.1 ppm, dewpoint H2O< -75°C (-103°F))
Delivery pressure
0.1 – 11 bar (1 – 160 psi)
H2 dryer
Drying system: static, maintenances-free
Cold PalladiumCatalyst (Option)
Reduces O2 < 0.01 ppm and moisture < 1 ppm
Temperature range
From 5 – 35°C (41 – 95°F) and humidity 80% to 25°C (77°F)
Touch screen
Digital screen with (operating parameters, system status, alarms) with LED indicators (Power on/off; ready or errors)
Dimensions
Standard 19” Rack 3U – depth 50 cm
Weight (kg/lbs)
17 / 37.5
Electrical supply
220 – 240 V 50 Hz
110 – 120 V 60 Hz
WATER
Water quality
Deionised, ASTM II, < 0.1 μS Conductivity
Supply pressure
Max. 6 bar
Internal water tank
300 ml with automatic refill via an internal sucking water pump
External water tank capacity (Optionnal)
5 or 10 liters
CONNECTIONS
Hydrogen outlet
1/8 Swagelock
Water inlet
Quick release push-in fitting
COMMUNICATION
USB/PC Control
Standard
RS232/RS485
Option
SPECIAL FUNCTION
Software function (Option)
Up to 32 units can be controlled in parallel mode
ACCESSORIES
Water tank 5 liters
Water tank 10 liters
Part Number
water.tank.005
water.tank.006

Download documentation

Disposer de toute l’information nécessaire pour mener à bien votre projet est fondamental, c’est pourquoi nous vous mettons à disposition ces documents.

N’hésitez pas à nous contacter pour toutes questions.

COSMOS RACK MB.H2 - Data sheet (EN)
COSMOS RACK MB.H2 - Setup guide
COSMOS RACK MB.H2 - User manual
