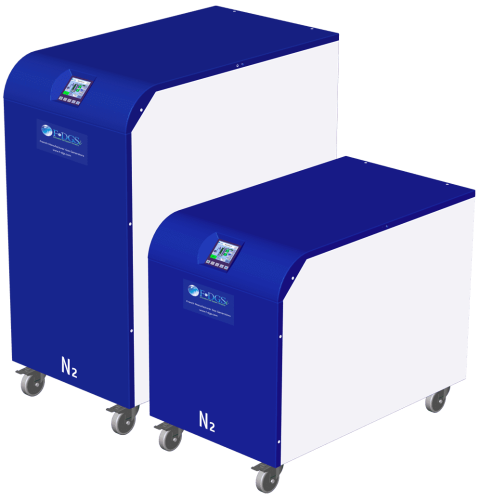

CALYPSO DP.WA Nitrogen Generator

For Waters ESI/APGC - Double Different Purities

Reference | CALYPSO.DP.WA.[Flow rate]/1 (With comp.)

Nitrogen

APGC LC MSMS System

With 2 models, the CALYPSO DP.WA, specifically designed for ESI/APGC LC MSMS and APGC LC MSMS System from Waters.

The CALYPSO DP.WA provides two differents purity of nitrogen from a single “plug & play” unit.

The CALYPSO DP.WA is available with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation.

The generator is controlled using the latest in color touch screen technology to display the process in real time, inlet / outlet pressures, N2 Flows and status of the system with remote access for diagnostic control.

Utilizing Smart Triple Filtration and Advanced technology PSA of separating Nitrogen and Oxygen to produce high quality Nitrogen gas on demand 24/7.

Advantages product

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

IMPROVED ECONOMY

Pure nitrogen gas produced as standard.

IMPROVED SAFETY

Nitrogen produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SECURITY OF SUPPLY

Integral oil free air compressor as an option guarantees continuous gas supply, independent of in house compressed air supply.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

Intelligent color touch screen to provide simple and user friendly management of all functions of the unit

Fully regenerative PSA technology

Two different nitrogen purities and pressures

Smart triple filtratrion PSA technology producing analytical grade nitrogen gas > 99% and > 99,999% purity

With integral oil free air compressor

Quiet thanks to the Soundproofed compressor box and anti-vibration features

Auto start

Audible alarm display and Visual maintenance indication with history log

Outlet flow indicator

Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor

Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)

Compact design

Compressors redundancy

Fit with wheels

Specifications

Models	CALYPSO.DP.WA.35	CALYPSO.DP.WA.70
Compressor	1 (With)	1 (With)
GENERALS INFORMATIONS
Max Nitrogen Flow rate	35 L/min @ 7 bar (101 psi)	70 L/min @ 7 bar (101 psi)
High Purity Nitrogen Flow rate	400ml/min @ 7 bar (101 psi)	800ml/min @ 7 bar (101 psi)
Nitrogen purity	> 99%
High Purity Nitrogen purity	> 99.999%
Particles	0.01 μ
Touch screen	Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
Max Relative Humidity	80% RH @ 25°C (77°F)
Temperature range	From 5 – 35°C (41 – 95°F)
Max Altitude	3000 Meters
Noise level @ 1M	53 dB (A)
Dimensions (W x H x D)	47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)	47.5 x 100 x 79 cm (18.7’’ x 39’’ x 31’’)
Weight (kg/lbs)	122 / 269	174 / 384
Electrical supply	220 – 240 V ac / 1 ph / 50 – 60 Hz
Electrical supply	110 – 120 V ac / 1 ph / 50 – 60 Hz
Fuse	10A
CONNECTIONS
Nitrogen outlet	1/4″ GF
Air Inlet	N /A
COMMUNICATION
USB/PC Control	In series

Download documentation

Disposer de toute l’information nécessaire pour mener à bien votre projet est fondamental, c’est pourquoi nous vous mettons à disposition ces documents.

N’hésitez pas à nous contacter pour toutes questions.

CALYPSO DP.WA Nitrogen Generator - Data sheet (EN)

CALYPSO DP.WA Nitrogen Generator - Setup guide

CALYPSO DP.WA Nitrogen Generator - User manual

Made in France
