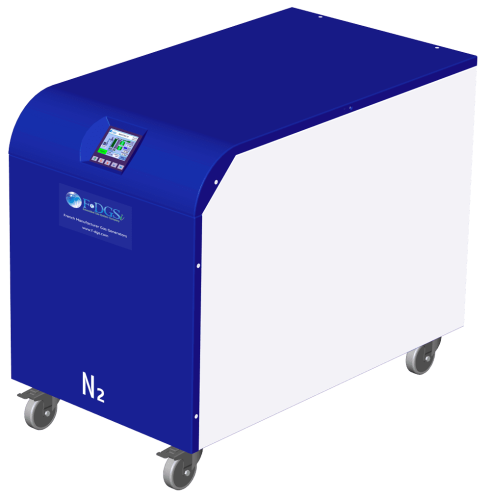

CALYPSO M Nitrogen Generator

Membrane Technology

Reference | CALYPSO.M.[Flow rate]/1 (With comp.)

Nitrogen

LC-MS, Sample evaporation

With 1 model, 35 L/min, the CALYPSO M Nitrogen range provide a nitrogen solution for LCMS instrument with an increase pressure of 8 bar (116 psi).

The CALYPSO M is available with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation.

The generator is controlled using the latest in color touch screen technology to display the process in real time, inlet / outlet pressure, N2 Flow and status of the system with remote access for diagnostic control.

Utilizing Smart Triple Filtration of separating Nitrogen and Oxygen to produce high quality Nitrogen gas on demand 24/7, up to 99,5% purity.

Advantages product

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

IMPROVED ECONOMY

Pure nitrogen gas produced as standard.

IMPROVED SAFETY

Nitrogen produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SECURITY OF SUPPLY

Integral oil free air compressor as an option guarantees continuous gas supply, independent of in house compressed air supply.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

Intelligent color touch screen to provide simple and user friendly management of all functions of the unit

High Nitrogen pressure up to 8 bar (116 psi)

Smart triple filtratrion producing analytical grade nitrogen gas up to 99.5% purity

With integral oil free air compressor

Quiet thanks to the Soundproofed compressor box and anti-vibration features

Auto start

Audible alarm display and Visual maintenance indication with history log

Outlet flow indicator

Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor

Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)

Compact design

Fit with wheels

Specifications

Models	CALYPSO.M.35
Compressor	1(With)
GENERALS INFORMATIONS
Max Nitrogen Flow rate	35 L/min
Max Nitrogen outlet pressure	8 bar (116 psi)
Nitrogen purity*	97% – 99.5%
Particles	0.01 μ
Inlet Air flow required @ 9 bar (130.5 psi)	N/A
Min Inlet Air quality	N/A
Touch screen	Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
Max Relative Humidity	80% RH @ 25°C (77°F)
Temperature range	From 5 – 35°C (41 – 95°F)
Max Altitude	3000 Meters
Noise level @ 1M	53 dB (A)
Dimensions (W x H x D)	47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)
Weight (kg/lbs)	89 / 196.2
Electrical supply	220 – 240 V ac / 1 ph / 50 – 60 Hz
Electrical supply	110 – 120 V ac / 1 ph / 50 – 60 Hz
Fuse	10A
CONNECTIONS
Nitrogen outlet	1/4″ GF
COMMUNICATION
USB/PC Control	In series

* Factory certified purity with respect to O2 content. Actual purity varies in relation to flow (min. 97% at maximum flowoutput)
