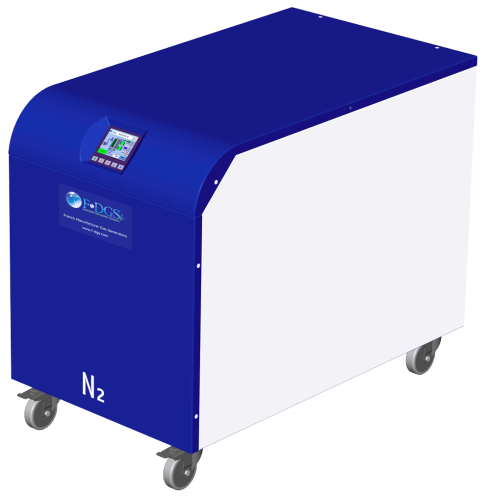

Z.NESO Nitrogen Generator

High Purity HCS Free - PSA Technology - Up to 5 L/min

Reference | Z.NESO.[Flow rate]/0 (Without compressor) or Z.NESO.[Flow rate]/1 (With compressor)

Nitrogen

GC-Carrier gas, GC-ECD

With 3 models, 1 l/min to 5 l/min, the Z.NESO Nitrogen range provide a High Purity Nitrogen solution for GC/ICP/TOC instrument.

For the Z.NESO, a heated catalyst oxidises CH4 from the Nitrogen gas flow providing Zero Nitrogen with Total hydrocarbon less than 0.05 ppm.

The Z.NESO is available without or with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation.

The generator is controlled using the latest in color touch screen technology to display the process in real time, inlet / outlet pressure, N2 Flow and status of the system with remote access for diagnostic control.

Utilizing Advanced technology PSA of separating Nitrogen and Oxygen to produce high quality Nitrogen gas on demand 24/7.

Advantages product

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

IMPROVED ECONOMY

Pure nitrogen gas produced as standard.

IMPROVED SAFETY

Nitrogen produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SECURITY OF SUPPLY

Integral oil free air compressor as an option guarantees continuous gas supply, independent of in house compressed air supply.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

Intelligent color touch screen to provide simple and user friendly management of all functions of the unit

Fully regenerative PSA technology

Without or with integral oil free air compressor

Quiet thanks to the Soundproofed compressor box and anti-vibration features

Option : Oxygen sensor : Online N2 Purity monitoring capability

Catalyst module : THC < 0.05 ppm

Auto start

Fast start-up purity < 60 min

Audible alarm display and Visual maintenance indication with history log

Outlet flow indicator

Energy Saving Technology (EST) :
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor

Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)

Compact design

Fit with wheels

Specifications

Models	Z.NESO.1		Z.NESO.3		Z.NESO.5
Compressor	0 (Without)	1 (With)	0 (Without)	1 (With)	0 (Without)	1 (With)
GENERALS INFORMATIONS
Max Nitrogen Flow rate	1 L/min		3 L/min		5 L/min
Max Nitrogen outlet pressure	6 bar (87 psi)
N2 purity	99.9995% (< 5 ppm O2) ; Total HCs < 0.05 ppm
Particles	0.01 μ
Inlet Air flow required @ 8 bar (116 psi) max	12 L/min	N/A	36 L/min	N/A	60 L/min	N/A
Min Inlet Air quality	ISO8573 – 1:2010 1.4.1	N/A	ISO8573 – 1:2010 1.4.1	N/A	ISO8573 – 1:2010 1.4.1	N/A
Max Relative Humidity	80% RH @ 25°C (77°F)
Touch screen	Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
Max Relative Humidity	80% RH @ 25°C (77°F)
Temperature range	From 5 – 25°C (41 – 77°F))
Max Altitude	3000 Meters
Noise level @ 1M	25 dB (A)	50 dB (A)	25 dB (A)	52 dB (A)	25 dB (A)	52 dB (A)
Dimensions (W x H x D)	47.5 x 66.2 x 65 cm (18.7″ x 26″ x 25.6″)		47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)
Power consumption	430 VA	655 VA	430 VA	1130 VA	430 VA	1130 VA
Weight (kg/lbs)	54 / 119	58 / 127	71 / 156	94 / 207	91 / 200	118 / 260
Electrical supply	220 – 240 V ac / 1 ph / 50 – 60 Hz
Electrical supply	110 – 120 V ac / 1 ph / 50 – 60 Hz
Fuse	10A
CONNECTIONS
Nitrogen outlet	G 1/4” (BSP) Female
Air Inlet	G 1/4”(BSP) Female	N/A	G 1/4”(BSP) Female	N/A	G 1/4”(BSP) Female	N/A
COMMUNICATION
USB/PC Control	In series

Download documentation

Disposer de toute l’information nécessaire pour mener à bien votre projet est fondamental, c’est pourquoi nous vous mettons à disposition ces documents.

N’hésitez pas à nous contacter pour toutes questions.

Z.NESO Nitrogen Generator - Data sheet (EN)

Z.NESO Nitrogen Generator - Setup guide

Z.NESO Nitrogen Generator - User manual

Made in France
